Motor parameters:
Output power - 180W; Rated voltage - DC 24V; Rated current - 8A; DC motor load speed - 2200rpm; Rated torque - 0.7Nm; DC deceleration rated efficiency - 70% Wire length: Left motor wire length 350±20mm (not included) Connector) Right motor wire length 350±20mm (excluding connector)

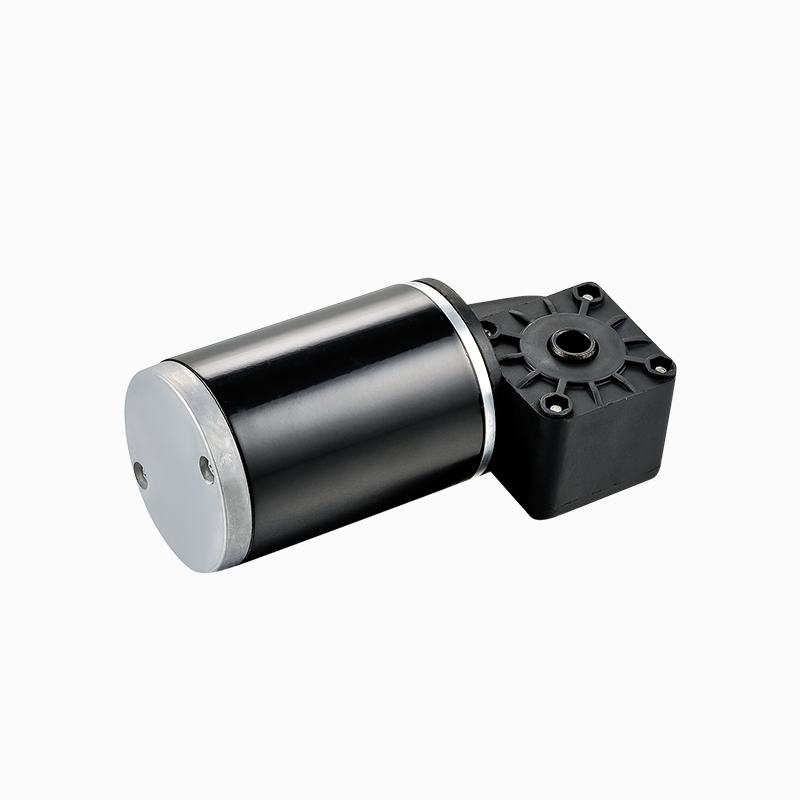

Designed for optimal performance, the 150W 9016 Wheelchair Brushed DC Reduction Motor is a versatile and reliable solution for various applications such as small electric vehicles, electric tools, children's toy cars, and electric wheelchairs. This motor boasts a robust construction, incorporating essential components like the L5 box, electromagnetic brake, stator, motor shaft, iron black casing, movement, magnet steel, magnetic coil, front end cover, rear end cover, output shaft, rotor, brush, replacement directional device, and permanent ferrite magnet tile.
Commendably, the commutation process is seamlessly achieved by the contact of graphite brushes with an annular commutator mounted on the rotor. This mechanism ensures efficient and reliable performance, allowing for a relatively constant speed after starting. Speed adjustment is made straightforward, adding to the motor's user-friendly nature.
The motor's operation is further enhanced by the capability to change the alternating frequency and waveform of the current wave supplied to the motor stator coil. This modification generates an electromagnetic field around the winding coil, which pivots around the geometry of the DC reducer. The resulting electromagnetic field propels the permanent magnet material on the motor rotor, initiating the motor rotation. The DC motor exhibits stable and controlled rotation characteristics.
The DC reducer's performance is intricately linked to factors such as the number of permanent magnets, magnetic flux intensity, and input voltage size. These factors contribute to the overall efficiency and operating characteristics of the motor. With an output power of 150W, a rated voltage of DC 24V, a rated current of 8A, and a load speed of 2200rpm, this motor delivers a reliable and powerful performance.
Noteworthy specifications include a rated torque of 0.7Nm and a DC deceleration rated efficiency of 70%. The motor's wire length is carefully designed, with the left motor wire measuring 350±20mm (excluding connector) and the right motor wire matching this length. These considerations contribute to the motor's ease of installation and integration into various applications.
In conclusion, the 150W 9016 Wheelchair Brushed DC Reduction Motor combines durability, efficiency, and adaptability, making it an ideal choice for diverse applications. Whether powering small electric vehicles, electric tools, children's toy cars, or electric wheelchairs, this motor stands out as a dependable and high-performance solution, meeting the demands of modern mobility and automation needs.
