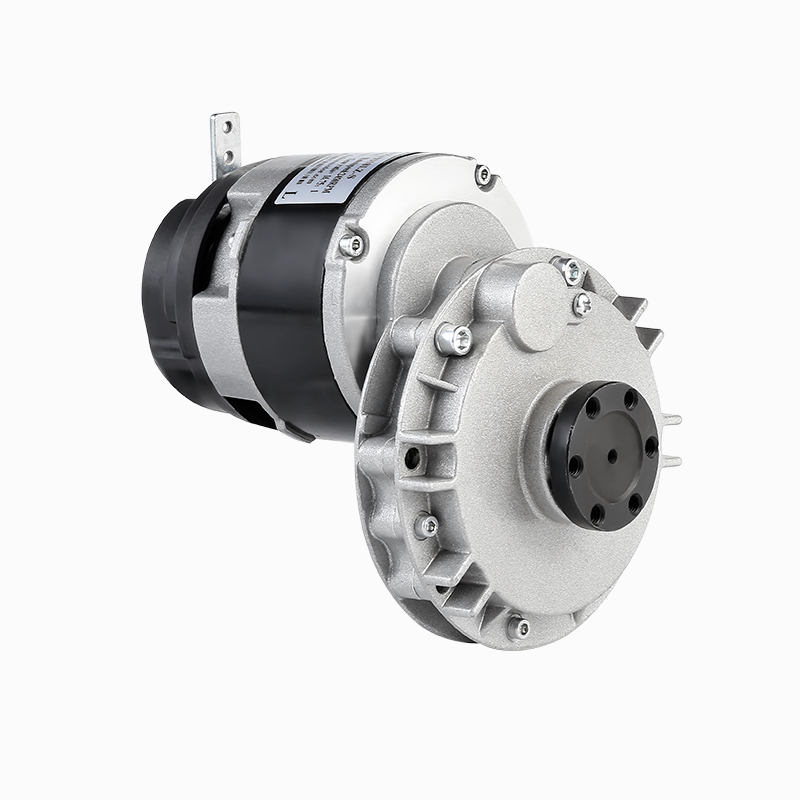

This motor consists of 9318 motors, an L3 box, an electromagnetic brake, stator, motor shaft, iron black casing, movement, magnet steel, magnetic coil, front end cover, rear end cover, output shaft, rotor, brush, replacement Directional device, permanent ferrite magnet tile.
The motor rotor is a permanent magnet material that is connected to the output shaft together with the casing. The winding coil is the motor stator, and there is no electronic commutation between the motor and the motor rotor through the Hall element.
The speed ratio is stable after starting and the speed change is easy
It is generally used for products with high control requirements, high rotational speed, and long-term operation, such as high-precision instruments, intelligent robots, etc.
The rotor of the brushed DC reduction motor has loose coils and is not connected to the output shaft, and the stator is a permanent magnet.
This product is suitable for small electric vehicles, electric tools, electric oil pumps, electric wheelchairs, etc.
Motor parameters:
Output power - 200W; Rated voltage - DC 24V; Rated current - 8A; DC motor load speed - 1800rpm; Rated torque - 0.7Nm; DC deceleration rated efficiency - 70% Wire length: Left motor wire length 350±20mm (not included) Connector) Right motor wire length 350±20mm (excluding connector)
Introducing our flagship product, the High-Quality 24V DC 200W 9318 Wheelchair Brushed DC Geared Motor - a technological marvel designed to meet the highest industry standards and cater to a wide range of applications. This motor is the embodiment of precision engineering, offering exceptional performance, distinct features, and numerous advantages that set it apart in the market.
Product Performance:
Powerhouse Performance: With a robust output power of 200W, our 9318 motor is built to deliver reliable and consistent performance, ensuring optimal efficiency across a variety of applications.
Smooth and Stable Operation: The motor boasts a rated voltage of DC 24V and a rated current of 8A, providing the necessary power for smooth and stable operation. This results in a dependable and controlled motor performance, critical for applications with high control requirements.
Impressive Speed and Torque: Operating at a DC motor load speed of 1800rpm and offering a rated torque of 0.7Nm, this motor exhibits excellent speed and torque characteristics. It guarantees precise control and exceptional responsiveness, making it ideal for high-precision instruments and intelligent robotic systems.
Efficiency at Its Best: Our DC deceleration-rated efficiency stands at an impressive 70%, ensuring that energy consumption is minimized while performance is maximized. This efficiency makes it an eco-friendly choice for applications requiring long-term operation.
